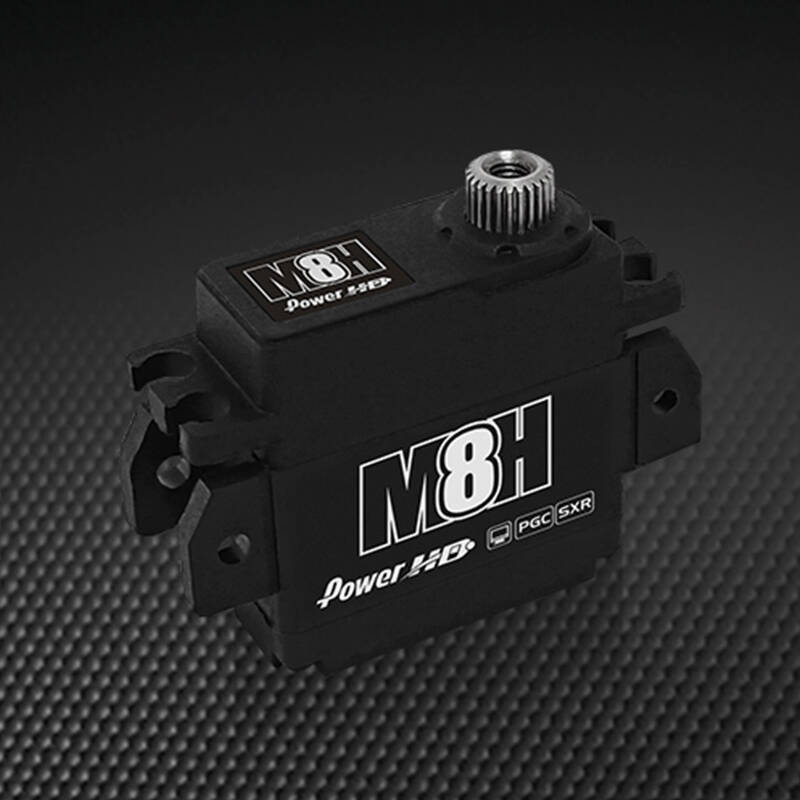

Power HD M8H 1/12 RC Racing Pan Car Servo Coreless 25T PHD-M8H
See all items by: POWERHD
Enter post code to calculate
Ship From Sydney - $0.00
Fast Shipping From Sydney
Express Delivery - $10.00
Need it fast? Upgrade to Express delivery.
Supports
FLYSKY i-BUS2 protocol
servo parameter setup / data logging / warning / and other functions
Support the high speed mode of:
Noble NB4 Pro modes: NOR / SR / SFR
Futaba modes: NOR / SR / UR
SANWA modes: NOR / SHR /SSR / SUR / SXR
Support the Power HD program box PG-CB63
Requires
Servo horn: 25 teeth (not included)
Specifications
Torque(4.8V): 4.5 kg-cm (62.5 oz/in)
Torque(6.0V): 6.3 kg-cm (87.5 oz/in)
Torque(7.4V): 7.5 kg-cm (104.2 oz/in)
Torque(8.4V): 8.5 kg-cm (118.0 oz/in)
Speed: 0.110 sec (4.8V) │ 0.085 sec (6.0V)
Speed: 0.073 sec (7.4V) │ 0.065 sec (8.4V)
Operating Voltage：8 ~ 8.4 DC Volts
Weight: 18.0 g (0.63 oz)
Motor Type: Coreless Motor

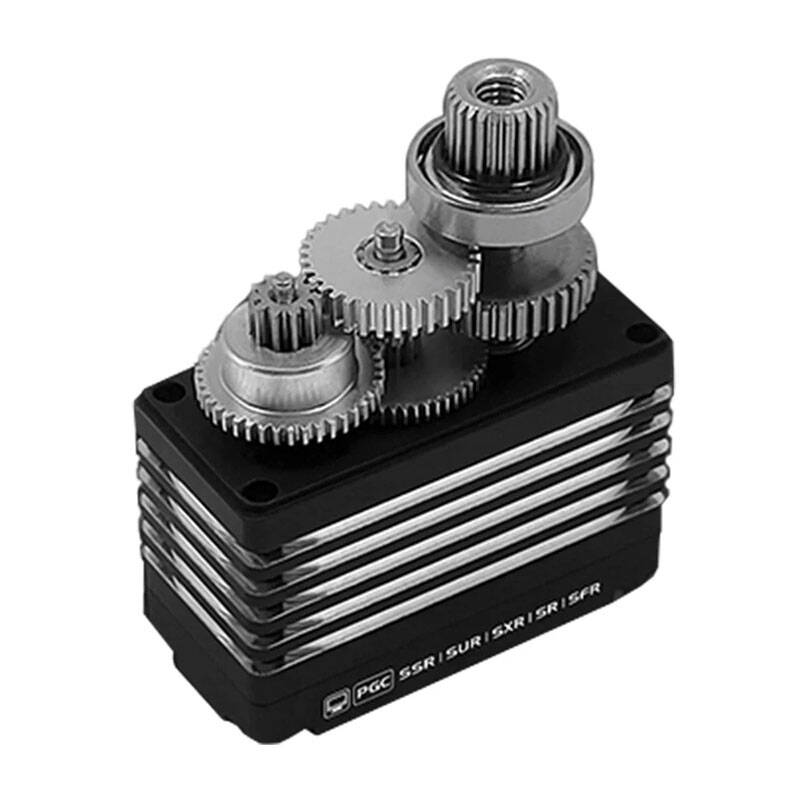

Gear Type: Titanium/Steel
Size：27.2 x 12.1 x 28.2 mm
Package Content:
