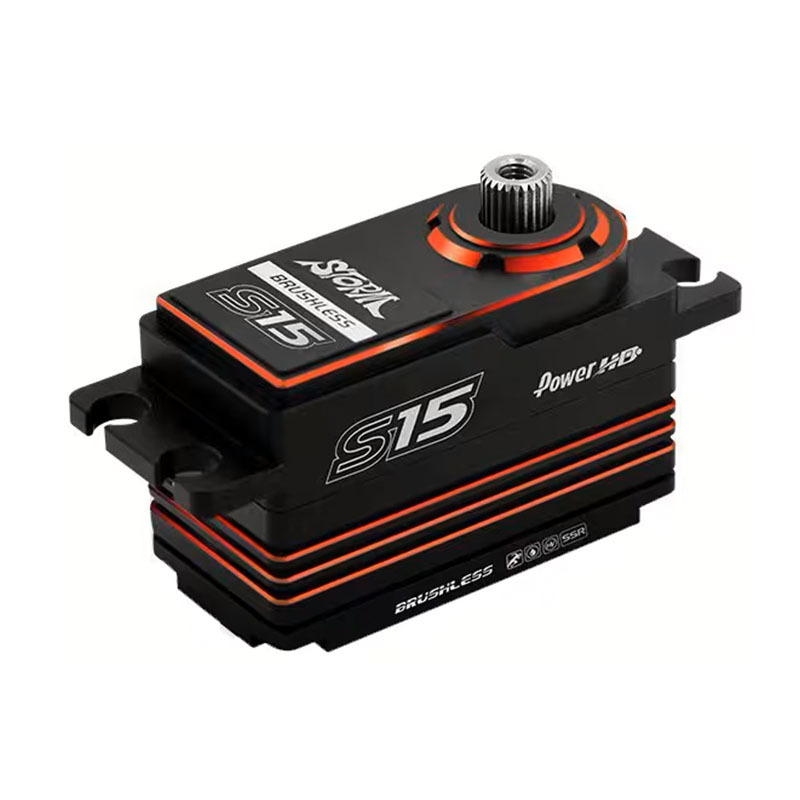

Power HD Silver Storm S15 Low Profile HV Brushless 16.5kg 8.4v Metal Geared Servo
See all items by: POWERHD
Enter post code to calculate
Ship From Sydney - $0.00
Fast Shipping From Sydney
Express Delivery - $10.00
Need it fast? Upgrade to Express delivery.
Low Profile
Full CNC Machined metal high-grade oxygen shell
7075+303 Titanium & Steel gearing
Japan NOBLE potentiometer
High pressure brushless
compatible with 6.0-8.4v voltage
Upgraded PCB, support SSR, SUR super high speed mode
Available in two-toned anodised Silver, Red & Gold colours
Specifications
Torque(6.0V): 11.5 kg-cm (159.7 oz/in)
Torque(7.4V): 15.0 kg-cm (208.3 oz/in)
Torque(8.4V): 16.5 kg-cm (229.1 oz/in)
Speed: 0.072 sec (6.0V) 0.060 sec (7.4V) | Speed: 0.050 sec (8.4V)
Operating Voltage 6.0 ~ 8.4 DC Volts
Weight: 52.0 g (1.83 oz)
Bearing Type Ball Bearing x 2
Motor TypeBrushless Motor
Gear Type Titanium & Steel
Operating Temperature: -20~60
Working frequency 1520 s / 333hz
Size:41.0 x 20.0 x 26.0 mm ( 1.61 x 0.79 x 1.02 in)
Total Height (A) = 32mm
Body Width (B) = 41mm
Below Mount (C) = 16.7mm
Above Mount (D) = 15.3mm
Total Length (E) = 54.4mm
Total Width (F) = 20mm
Package Content:
